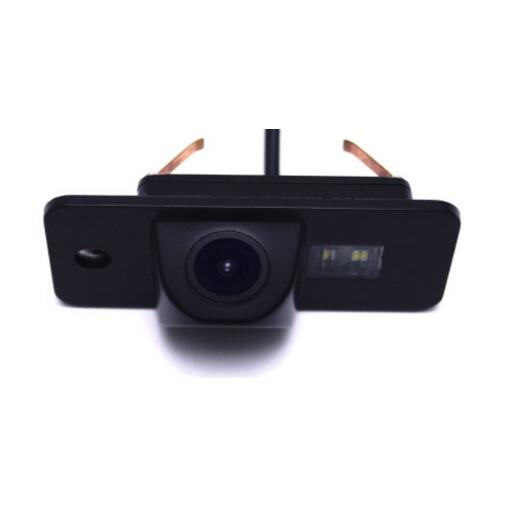

Backup camera for Audi A3/S3/A4/S4/RS4/A6/S6/RS6/A8/S8 and Audi Q7
Choose options
Note: Measure the size of license plate light before ordering this model.
Car compatibility
A4/S4（B6，8E / 8H 2001-2005),
A6（4F)2005-2009,
A8/S8 2003-2007,
Q7 2007-2009,
S6 2005-2009,
RS4/Avant quattro 2006-2008,
RS4 Cabrio 2006-2008,
RS6 Plus/Avant 2008-2009

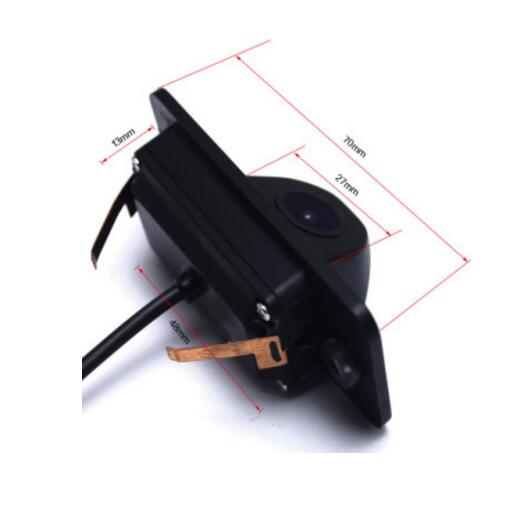

Notice: our model is 70 mm * 32mm, please check the original
license plate light before order.
Features
1.Special design to replace the original car license plate light, perfect match, no damage to the installation.
2.Perfect night vision.
3.Can help avoid accidents, good durability.
4.Waterproof rating IP67.
5.Super View angle:140°- 170°(v)/125°(h)
6.Each of our products need to pass the vibration test, aging treatment, waterproof test, high and low temperature test UV test,
air tightness test and a series of vehicle standard test.
Technical Parameters
Image sensor:1/3 PC1058
0.1Lux Low IIIumination for Night vision
Pixel:960*576(V)
Horizontal Resolution:520 TV Line
TV standard: NTSC / PAL(Optional)
Super View angle:140°- 170°(v)/125°(h)
Waterproof :IP67/IP68
Video Output:1Vp-p/75 OHM RCA male
Audio Output:NO
Sync.System: DC12V
Electronic scale: YES
Electronic Shutter:1/60-1/12000sec
White Balance: AUTO
Working temperature:-20°C~+70°C (RH 95% MAX)
Working temperature:-40°C~+85°C
System: PAL or NTSC optional
Can with distance reference line (default)
Package Includes
1*Special Car Rear View Camera
1*1.2m Power wire
1*6m Video wire
1*Conversion wire
