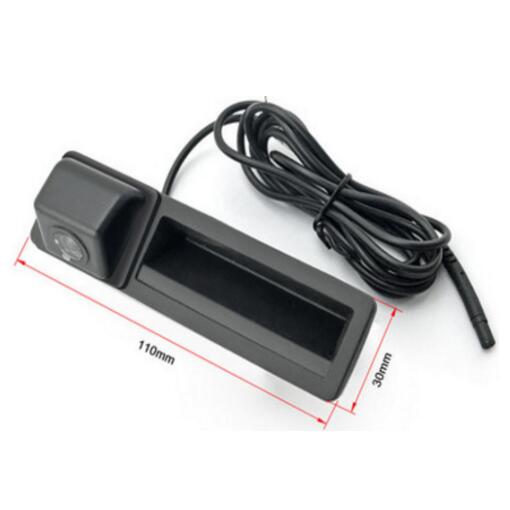

Handler Rearview Camera for Audi A6L(2011)/Q7 A4 S5 (2011-2012)

Note:  Measure the size of license plate light before order this model.

Car compatibility

Features

1.Special design to replace the original car license plate light, perfect match, no damage to the installation.
2.Perfect night vision.
3.Can help avoid accidents, good durability.
4.Waterproof rating IP67.
5.Super View angle:140°- 170°(v)/125°(h)
6.Each of our products need to pass the vibration test, aging treatment, waterproof test, high and low temperature test UV test,
air tightness test and a series of vehicle standard test.

Technical Parameters

Image sensor:1/3 PC1058
0.1Lux Low IIIumination for Night vision
Pixel:960*576(V)
Horizontal Resolution:520 TV Line
TV standard: NTSC / PAL(Optional)
Super View angle:140°- 170°(v)/125°(h)
Waterproof :IP67/IP68
Video Output:1Vp-p/75 OHM RCA male
Audio Output:NO
Sync.System: DC12V
Electronic scale: YES
Electronic Shutter:1/60-1/12000sec
White Balance: AUTO
Working temperature:-20°C~+70°C (RH 95% MAX)
Working temperature:-40°C~+85°C
System: PAL or NTSC optional
Can with distance reference line (default)

Package Includes

1*Special Car Rear View Camera
1*1.2m Power wire
1*6m Video wire
1*Conversion wire
